  • Name: Sidewall Conveyor Belt
  • Number: 2
  • Time: 2017-04-11
  • Views : 56

Leading Manufacturer  Sidewall Conveyor Belt for Bucket Elevator

          What is the Detail of Sidewall Conveyor Belt?

Application:

Harbor, metallurgy, mining, electricity, coal, foundries, construction, food, cement works, fertilizer, etc.



Carcass: the carcass of the base belt can be CC, NN and EP fabric



Advantages:

1. low maintenance cost

2. Large transport capacity, and it can avoid material spilling effetely

3. The belt can facilitate switching from horizontal to inclined conveying

from inclined to horizontal conveying

4. It saves a lot space as it allows material conveying at 0°-90°

      What is the Main Technical Data for Sidewall Conveyor Belt?



Base Belt Width B(mm) Sidewall Height H(mm) Cleat Height H1(mm) Bf(mm) Br(mm) R(mm)
300 40 35 25 180 35
60 55 50 120 40
80 75
400 60 55 50 180 60
80 75
100 90
500 80 75 50 250 75
100 90
120 110
650 100 90 50 350 100
  120 110
  160 140 75 300
800 120 110 50 460 120
160 140 75 410
200 180
1000 160 140 75 550 150
200 180
240 220
1200 160 140 75 690 180
200 180
240 220
300 280 105 630
1400 200 180 75 830 210
240 220
300 280 105 770
400 360
1600 200 180 75 970 240
240 220
300 280 105 910
400 360
1800 240 220 75 1110 270
300 280 105 1050
400 360
500 460 125 1010

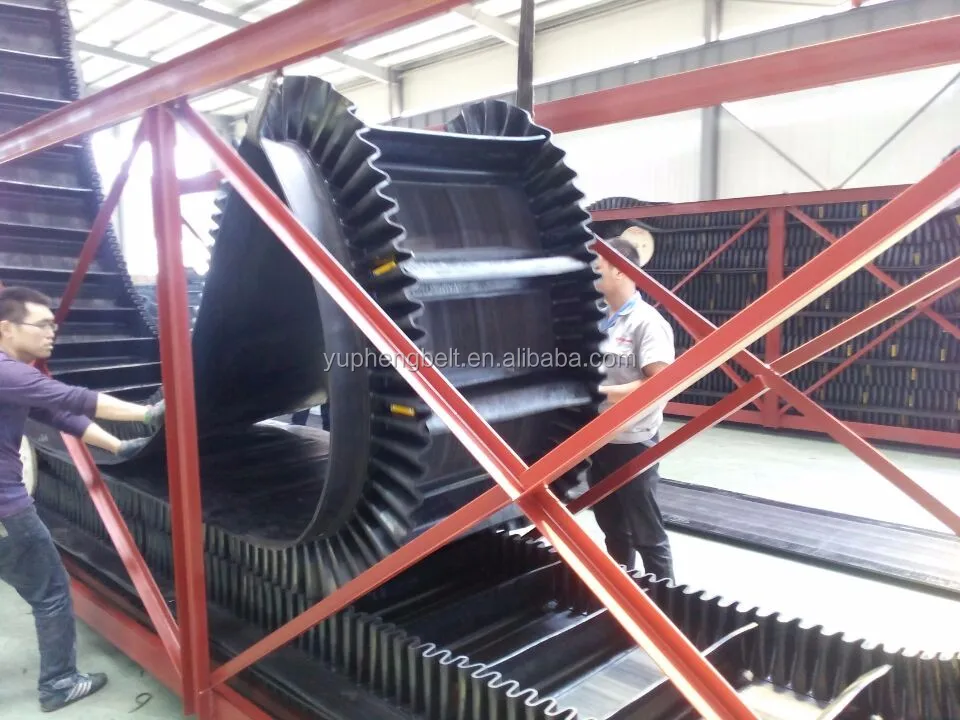

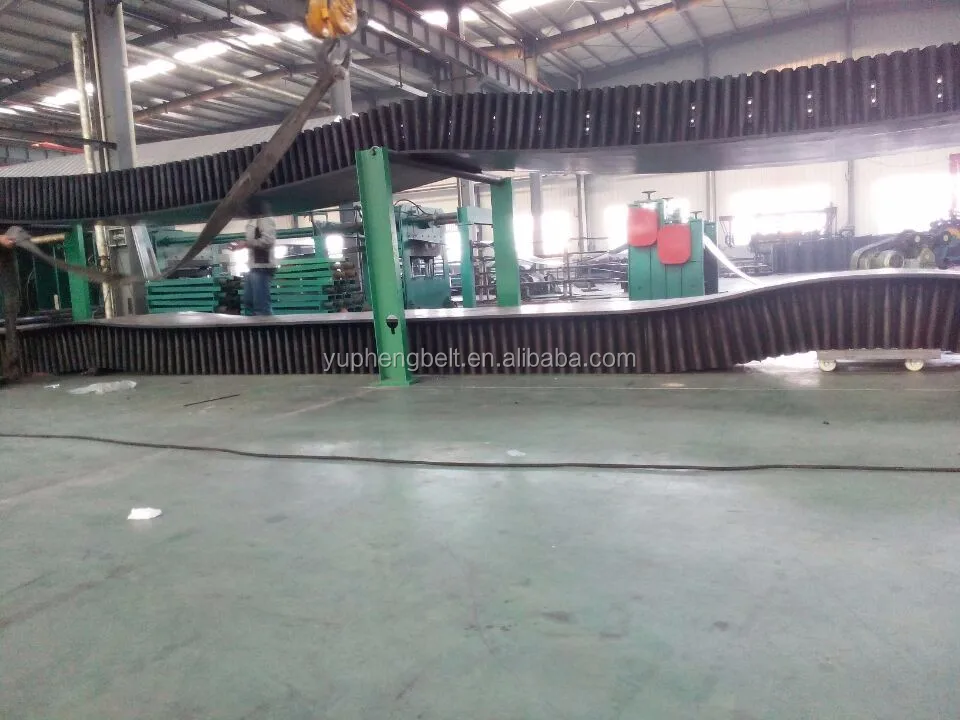

         What are Pictures of Conveyor Belts Showing?
